Overview of Configuration Tables

You can maintain all tables in the Configuration tab.

ActiveSystem

In this table, you maintain the Analysis Systems to be connected to Interface Scan with ABAP® Stack.

Field	Description
SID	SID of the system you want to analyze. It must correspond to the system ID of the table /SNP/VA00VSYS in your SAP® Collector System.
Client	The number of the client you want to analyze. Enter * if you want to analyze all clients.
App System	Corresponds to the Name field in the ApplicationSystem table. We recommend entering the SID of the system because the SID of the installed SAP® system is usually assigned to the system as the computer name.
Active	Option that indicates whether the system should be analyzed (option enabled = include in analysis)
Important	This option specifies what happens to the system when an error occurs. When this option is enabled, the analysis terminates if an error occurs. When this option is disabled, the data of the previous period is used for this system if an error occurs.

ApplicationSystem

This table includes all specified and found systems. If new systems are found during a collector run, they are entered in this table.

We recommend maintaining them in the view ApplicationSystemView.

Field	Description
Name	Computer name/system IP. In the case of SAP® systems, this is usually the SID of the system. Newly found systems include the prefix ? in the name.
Party	Only for connection type PI (sending/receiving party from the SAP® PI configuration)
Component	Only for connection type PI (sending/receiving component from the SAP® PI configuration)
System Category	Assignment to a cluster system. You must create the cluster system manually as an independent system (entry in ApplicationSystem). The name specified in System Category corresponds to the Name field of the virtual entry. It is used for internal documentation purposes.
System Type	It is used for internal documentation purposes.
System Usage	This is automatically set to Prod for all new entries. Prod stands for production systems. It is used for internal documentation purposes.
Application Provider	This indicates the system type. It is automatically set to SAP for Analysis Systems. It is used for internal documentation purposes.
Application Version	Customized value for documentation purposes
DB System	Customized value for documentation purposes
Description	Description field for documentation purposes
System Location	This is automatically set to Local for all new entries. Local stands for systems located at the company's headquarters. It is used for internal documentation purposes.
System Purpose	This documents the intended purpose of the system. The field is automatically set to App for all new entries. App stands for “application”. It is used for internal documentation purposes.
Create Sheet	Filter option that overwrites the existing system selection.
Is Third Party	Customized value for documentation purposes. In the case of PI, this value is set if an external system is involved. If identification using existing data is not successful, you can change the value subsequently.
Is Business System	Customized value for documentation purposes
Central Box	All systems for which this option is enabled appear below Central Query in the Central System selection field in addition to the Analysis Systems.
Start Date	Date on which the system was added to the table (find date). The date is automatically set when the entry is made.
End Date	Date on which this system was marked as deleted. The date is automatically set to 12/31/9998 when the entry is made (this means that the system is currently valid).
System Type2	Reserved field, not intended for customer use.

ApplicationSystemView

This is the maintenance view for the ApplicationSystem table. You can find the field description in the ApplicationSystem table.

AssignBusinessAttributesView

This is the maintenance view of the business attributes. The values are written to the connection table.

You can assign the business attributes based on your own needs. They allow you to extend the analysis based on business data.

Field	Description
Description	Description text of the connection. It is transferred to the Description field in the analysis result (optional)
Business Attribute 1	Assigns a free attribute text. Specified values are available for direct selection. It is available as a criterion in the control system analysis (optional)
Business Attribute 2	Assigns a free attribute text. Specified values are available for direct selection. It is available as a criterion in the control system analysis (optional)
Business Attribute 3	Assigns a free attribute text. Specified values are available for direct selection. It is available as a criterion in the control system analysis (optional)

AssignBusinessSystemsView

This is the maintenance view for the BusinessSystems table. The table contains newly found business systems. They are found when calling the IDOC/PI statistics.

Field	Description
Business System	Name under which the system is found in the statistics. Usually, this is the SID followed by the character string CLNT and the client number. This field cannot be changed.
IDOC	If this option is enabled, a IDOC/EDI connection is involved. The business system corresponds to a logical destination. Otherwise, web services from PI connections are involved.
SID	For newly created systems, contains the ? symbol followed by the value from the Business Systems field. Since this value is displayed and the system usually uses other protocols as well, enter the SID here so that the systems (for example from IDOC and RFC) are displayed as a single system.
Client	Empty in new systems. Enter the client here.

AssignConnectionCategoryView

This view enables the sender and receiver to each set one category related to a particular connection. The category corresponds to a cluster system that must be created in ApplicationSystem. If a cluster system is specified for the receiver and the sender, the sender is prioritized over the receiver. In this case, the receiver is not switched. This enables you to assign individual connections to a cluster system without having to assign the entire system with all connections to a cluster.

Field	Description
Sender Category	You can specify any text as a category. Already specified categories are available for preselection. A cluster system with the same name must be available in ApplicationSystem.
Receiver Category	You can specify any text as a category. Already specified categories are available for preselection. A cluster system with the same name must be available in ApplicationSystem.
Description	Description of the connection

AssignHostnameView

This is the maintenance view for the Hostname table. It lists all hosts whose SID has not yet been maintained. All hosts are specified below the name of the connection entry with the prefix ?. All hosts whose SID is maintained will no longer be listed here after saving. However, they are still available in the ApplicationSystem table.

Field	Description
SID	SID that should be entered for all senders and receivers for this system. Setting the SID rewrites all connections for the system. You cannot undo this action.

AssignMultiInstanceView

This is the maintenance view for combining multiple gateway connections. You can enter any replacement interface in order to combine multiple connections. However, this is only valid in the case of sender = receiver (gateway communication).

Field	Description
Multi Instance Of	Indicates the interface group. All connections with the same specification are combined. It is used for internal documentation purposes.
Description	Description of the connection

AssignSystemCategoryView

This is the maintenance view for the ApplicationSystem table. It contains all systems found whose names are included in the connections as a sender or receiver – exclusively internal connections, ABAP drivers and connections to R/3 systems.

Field	Description
System Category	Assignment to a cluster system. You must create the cluster system manually, as an independent system, with an entry in ApplicationSystem. The name specified in System Category corresponds to the Name field of the virtual entry. It is used for internal documentation purposes.
System Location	This is automatically set to Local for all new entries. Local stands for systems located at the company's headquarters. It is used for internal documentation purposes.
System Purpose	This documents the intended purpose of the system. It is automatically set to App for all new entries. App stands for “application”. It is used for internal documentation purposes.
Description	Description of the system. It appears in the drop-down menu in the Central Query tab.
System Type	It is used for internal documentation purposes.
System Usage	This is automatically set to Prod for all new entries. Prod stands for “production systems”. It is used for internal documentation purposes.

BusinessSystems

This table contains all IDOC/EDI systems that were found during collector runs. The connection data is only assigned correctly if you have maintained the SID. Otherwise, another system with the name from the Business System field is displayed.

Field	Description
Business System	System name from the statistical data. For SAP® systems, this is a logical system name, often named according to the nomenclature <SID>CLNT<client>. The field is filled automatically and must not be changed.
IDOC	The option is enabled for IDOC/EDI connections and disabled for SAP PI connections (this is a business system)
SID	This initially contains the system description with the prefix ?. For logical system names, it is recommended that you use the same SID that was used in the Hostnames table for that system. If the names are different, the two SIDs are stored as synonyms in the Interface Scan database. For SAP PI business systems, you should at least remove the question mark. Carefully consider which SID you assign. After saving your changes, you cannot reverse them. Subsequent changes only affect newly collected interface data. Old SID names may disappear over time by archiving unneeded periods.
Client	Client number. You can find it in the Business System field and enter it here if required.
Period	Period in which this entry was found.
Time0	Timestamp (date only) on which this entry was created.
Description	Description of the system.

ConnectionType

This table contains all the protocols to be queried.

Field	Description
Name	Name of the protocol. Standard protocols: RFC IDOC WS DBCO PI FILE
Description	Optional description text. The content is displayed as additional information in the selection field of the Central Query tab.
Active	If this option is enabled, the protocol type is queried.

HostNames

This table contains all systems (except for business systems) that were found during collector runs. The maintenance view for the table is AssignHostnameView. In contrast to the maintenance view, all entries are listed in the table. Any change to the SID immediately affects all connection data.

Field	Element
Hostname	Found name/IP from the statistical data. The host name must not be changed.
SID	SID that belongs to this host (multiple host entries can use the same SID). Any change to the SID immediately affects all connection data. Pay attention to the notes in the BusinessSystems section. They apply here as well.
Period	Period in which this entry was found.
Time0	Timestamp (date only) on which this entry was created.

PIStatAccess

In this table, you can maintain the PI Analysis Systems. You must create at least one entry for the domain and one entry for each Analysis System.

Field	Description
Domain	(Domain entry). Domain you want to query. There must only be one entry with a value in this field.
SID	(Analysis System entry). SID of the PI system you want to query.
System Type	(Analysis System entry). This can be Java or ABAP®.
Is Adapter	(Analysis System entry). This is enabled if an adapter is involved. The parameter must always be enabled for Java.

RfcConnectionFilter

This table allows you to specify filters for suppressing unwanted RFC connections in the analysis results. In contrast to other filter tables, the relevant connection data is not deleted or the data transfer suppressed. As soon as a filter entry is deleted, the corresponding connections become visible again in the analysis results.

In the standard delivery, there are already more than 100 filter entries, which are the usual internal connections, which for example arise through system-internal “housekeeping” activities, workflow method executions and the like and are not to be understood as real interfaces.

If these connections are of interest, you can delete the corresponding filters.

• All connections are compared to the entries in this table and are suppressed if they match.
• You can use wildcards. The character % serves as a placeholder.



FILEConnectionFilter

This table allows you to specify filters for suppressing unwanted or unnecessary FILE connections in the analysis results. Filters defined here restrict the evaluation of SAP^® usage statistics that are stored in the table X_TCODEStatistics during the FillRuntime phase.

Detailed Description

During the collector run (FillRuntime phase), the TCODE statistics imported from the Analysis Systems are evaluated based on their relevance for the type FILE.

Each hit determined as relevant either creates a new connection of type FILE or sets the calls counter accordingly. This can lead to significantly more than 100,000 connections in an SAP^® application system. We therefore strongly recommend filtering the TCODE statistics accordingly.

The table FILEConnectionFilter was implemented for this purpose. It allows you to filter the TCODE statistics according to the following criteria:

• ObjectName Pattern: corresponds to the EntryID or Username
• Type: U = User, T = TCode, R = Report
• MODE: Specifies whether a defined filter pattern is supplementary (I = Include) or delimiting (E = Exclude)

Relevant TCODE statistics must be included using include patterns; irrelevant statistics must be delimited using exclude patterns. Only actively set patterns are taken into account.

Defining Patterns

A pattern is a string that can contain wildcards. Possible wildcards are:

• “%” Any characters of any length
• “_” Exactly one character of your choice
• [_] Escape sequence for the character _

Evaluating the Filter Table at Runtime

The starting point is the empty set, i.e. if no active patterns (or only exclude patterns) are defined, no TCODE statistics are evaluated and therefore no connections of type FILE are created.

In the first step, all active include patterns are evaluated. Next, all active exclude patterns are removed from the result set. Lastly, the remaining result set is checked for the existence of file interfaces.

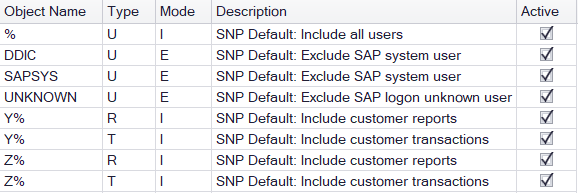

Default Values

The Interface Scan standard delivery contains default settings for FILEConnectionFilters. As a result, only the standard customer namespace (Z*/Y*) is evaluated initially. In addition, SAP^®-internal technical users are excluded:

FILEReducePattern

This table allows you to combine multiple connections of the type FILE.

The defined patterns are applied to ReceiverInterface only. Once you save a pattern, it is applied to all existing connections. The connections that have become redundant due to the pattern are combined into one or a few connections. The values for Calls, KBSent and KBRead are aggregated for this purpose. Depending on how many patterns are created at the same time and how many connections are involved, this can take several minutes. The Interface Scan Client does not respond to any other input during this procedure.

Field	Description
Program	You can restrict a pattern to a program/transaction such as SenderInterface. You can also specify a pattern here. If you leave the Program field empty, this is interpreted as %, and the system automatically fills it after saving.
Pattern	This is the search and replace pattern used to replace the job name ReceiverInterface. ReceiverInterface is truncated and the symbol * is inserted into the pattern instead of the wildcard %. For more information, refer to the Defining Patterns section.
Description	Description of the pattern.

RFCReducePattern

This table allows you to combine multiple interfaces into one interface. This function is used for all connections whose SenderInterface is identical to the ReceiverInterface. The combination is applied to all connections whose ReceiverInterface corresponds to the defined Pattern. Additionally, all values of the following columns must be identical in all rows:

• Sender
• Receiver
• Destination

Field	Description
Pattern	Search string that is compared to the ReceiverInterface. You can specify a % for any character in the ReceiverInterface. The % stands for any character as well as any number of characters. The paths of the interfaces are replaced by the * symbol instead of the arbitrary text.
Description	Description field for documentation purposes

SIDFilter

All SIDs that are specified in this table are excluded during a collector run.

Field	Description
Name	SID you want to exclude. This is valid for all future collector runs as soon as the entry is made and as long as the entry exists.
Description	Description field for documentation purposes

WSPathFilter

When calling a browser, a web service delivers a lot of data that is irrelevant for the evaluation, such as graphs. For this reason, is possible to use this table to exclude the data. As with the filters for RFC connections, the % symbol can be used as a placeholder for any text.

Field	Description
Filters	Search string that is compared to the path of the web service. You can enter % in the path for any character. The % stands for any character as well as any number of characters.
Active	If this option is enabled, the filter is taken into account.
Description	Description field for documentation purposes

WSReducePattern

In some cases (for example, ESS scenarios), Web service calls are enriched at runtime with GUIDs or other suffixes that represent the respective Web service instance. This artificially creates a multitude (up to several thousand) of entries for a web service, which are technically represented as different interfaces. Such “duplicates” can be combined into a single connection via corresponding filter values. Otherwise the same principles apply as for RFCReducePattern.

Field	Description
Pattern	Search string that is compared to the path of the web service. You can enter % in the path for any character. The % stands for any character as well as any number of characters. The paths of the interfaces are replaced by the * symbol instead of the arbitrary text.
Description	Description field for documentation purposes
