RFC Logs Deletion



Created by:

SNP

Client-dependent:

No

Settings as variant:

No

Support for RecycleBin:

No

Recommended for HANA pre-migration Housekeeping:

Yes
Introduction

Transactional RFC (tRFC, previously known as asynchronous RFC) is an asynchronous communication method that executes the called function module just once in the RFC server. The remote system does not need to be available at the time when the RFC client program is executing a tRFC. The tRFC component stores the called RFC function, together with the corresponding data, in the SAP database under a unique transaction ID (TID).
The tables ARFCSSTATE, ARFCSDATA and ARFCRSTATE can contain a large number of entries. This leads to poor performance during tRFC processing.
In SNP Outboard™ Housekeeping, it is possible to delete old data from these tables using a retention time.



Step List

1. In the main SNP Outboard™ Housekeeping menu, select Basis > Deletion Tasks > RFC Logs and click Settings.
2. Specify your desired settings. You can create new settings by entering a new ID or by choosing from existing settings.
3. To create new settings, you must fill out the Description field.

For more information on settings, refer to the Creating a settings ID chapter of this user documentation.



_scroll_external/attachments/worddavc4f988dce9cdb70a1de8c0161bf0d5aa-b65afc3a36d5fc583681e2bcb649a5af7f68544b9e92601f8ae280f5624dd293.png

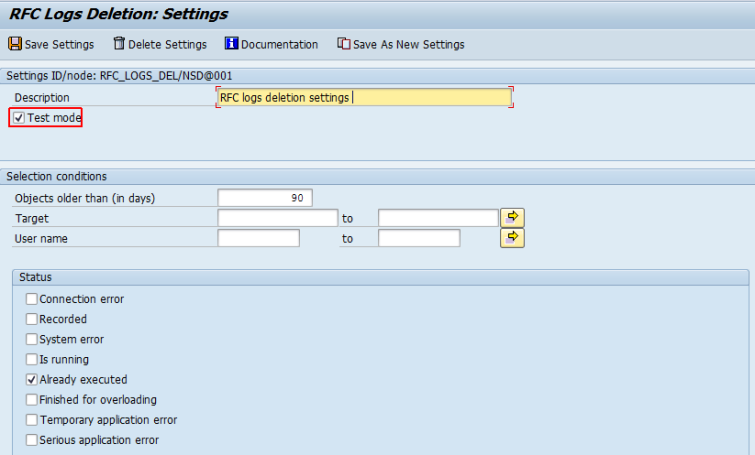

RFC Logs – Settings detail



4. Specify selection conditions for the options Objects older than (in days), Target, and User name, if necessary.
5. You can also restrict the deletion of outdated logs based on the status:

  • Connection error

  • Recorded

  • System error

  • Is running

  • Already executed

  • Terminated due to overload

  • Temporary application error

  • Serious application error

6. Click Save Settings to save the selection.
7. To make further changes, click Modify Settings and confirm.
8. Once the settings for RFC log cleaning are specified, you can run the created/modified settings group from the main menu.

There are several options for starting the deletion. For more information, refer to the Executing and Scheduling Activities chapter of this user documentation.


You should specify the settings ID when executing/scheduling the activity.
To check the status of the run, you can go to the monitor or check the logs.

Recommendation

Our recommendation is to schedule the task RFC Logs Deletion weekly.

Related SAP Note

16083
